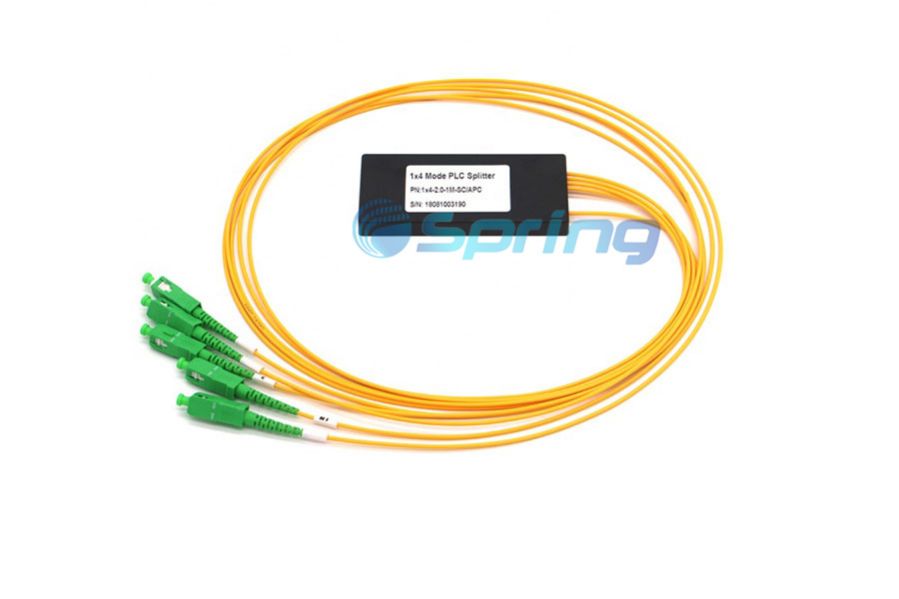

1X4 2×4 ABS Box type Fiber PLC Splitter

Product Model

1X4&2×4 ABS Box PLC Splitter

Product Description

We can 1X4&2×4 ABS box type PLC Splitter with connector and without connector.

Springoptic offers a variety of ABS box and cassette type splitter modules and products. PLC Splitter Modules are available in the form of either plastic module cassette (an ABS box) with ruggedized fiber jackets of 2mm and up to 3mm, or LGX metal box for plug and play splitter applications. Customized designs are also available for customer needs, call or e-mail us about anything you need that you don’t see here. The springoptic PLC splitter family features the whole series of 1 x N and 2 x N splitter boxes and modules that are tailored for specific applications. All splitters provide excellent optical performance and reliability that meet GR-1221-CORE and GR-1209-CORE specifications.Customized designs are also available for customer needs, call or e-mail us about anything you need that you don’t see here.

Features

1X4&2×4 ABS Box PLC Splitter Features:

Low insertion loss

Low Polarization Dependent Loss

Excellent Environmental Stability

Excellent Mechanical Stability

Telcordia GR-1221 and GR-1209

Options:

1×2, 1×4, 1×8, 1×16, 1×32, 1×64 splits

2×2, 2×4, 2×8, 2×16, 2×32, 2×64 splits

Unconnectorized

Fiber jacketing outside boxes 2mm and up to 3mm

ABS box type or inside metal box/module cassette type

SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC, FC/APC, ST/UPC connector options

Custom connector configurations and combinations

Specification

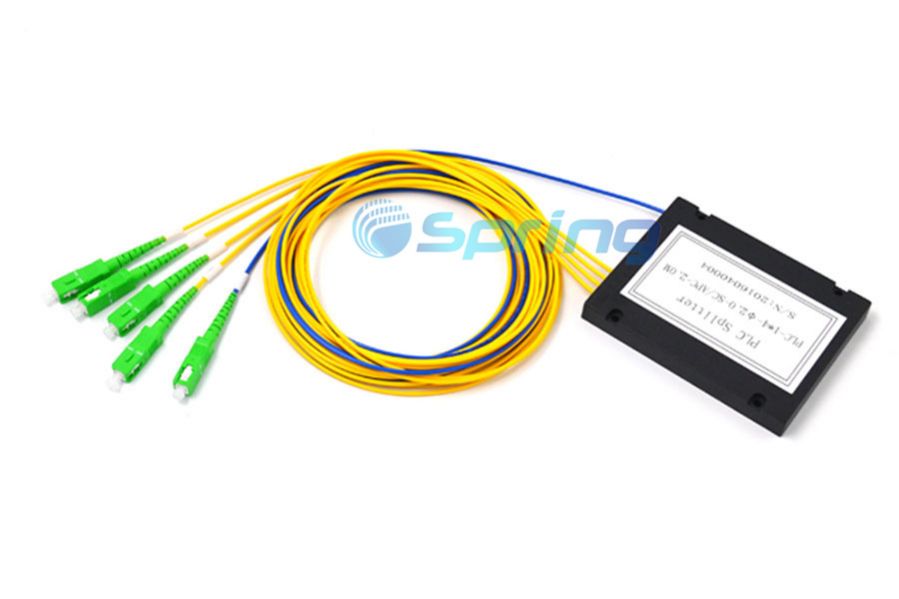

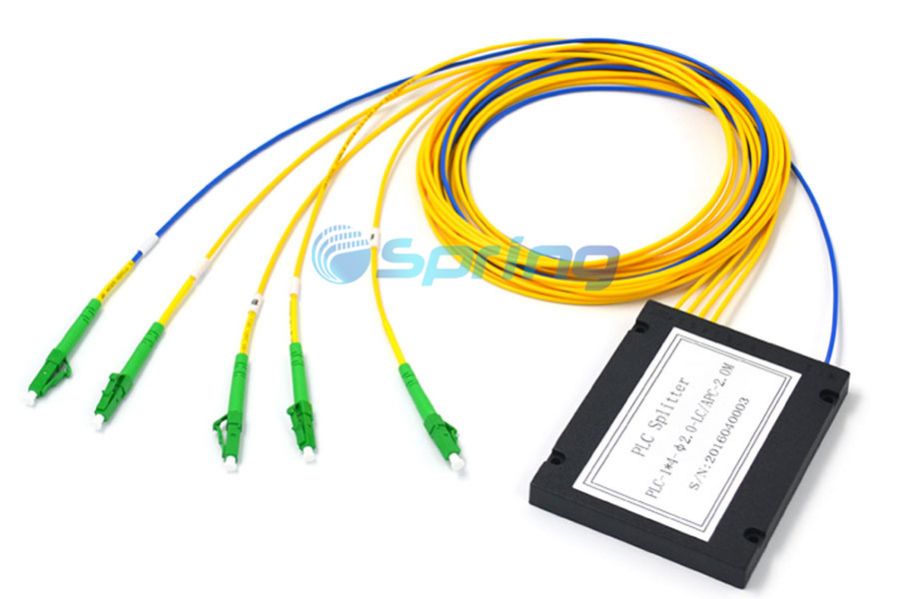

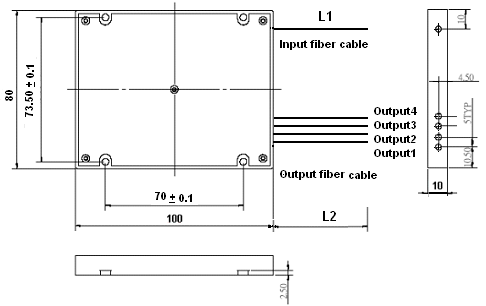

1X4 PLC Splitter (Measured at room temperature and excludes connector loss)

TYPE		1*4
Fiber Type		9/125 um or customer appoint
Operating Wavelength(nm)		1260～1650
Insertion Loss(dB)	Typical	6.8
	Max	7.5
Loss Uniformity(dB)	Max	0.7
Polariation Dependent Loss(dB)	Max	0.2
Directivity(dB)		≥55
Return Loss (dB)		UPC:50 APC:55
Operating Temperature (°C)		-40～+85	Storage Temperature (°C)

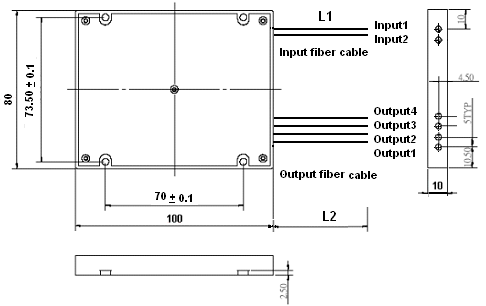

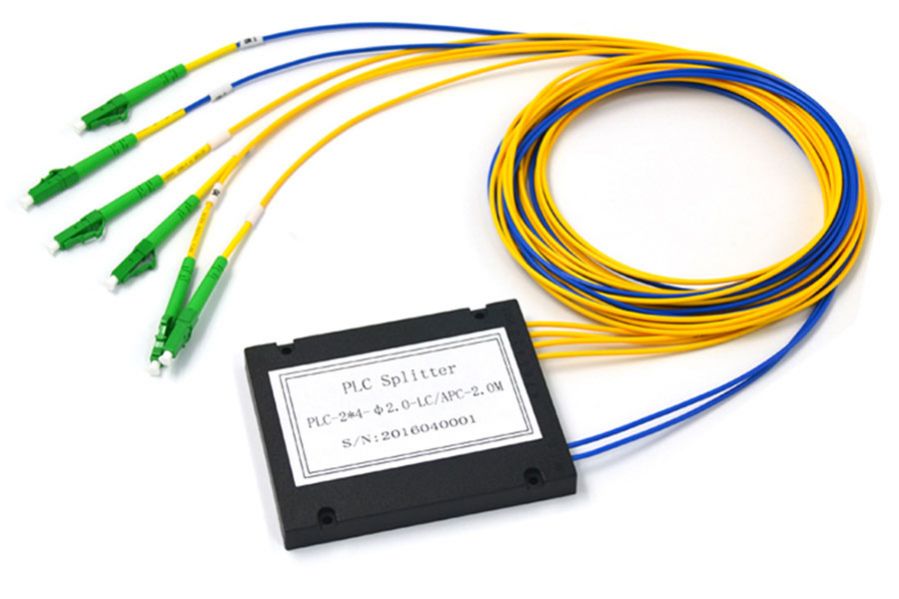

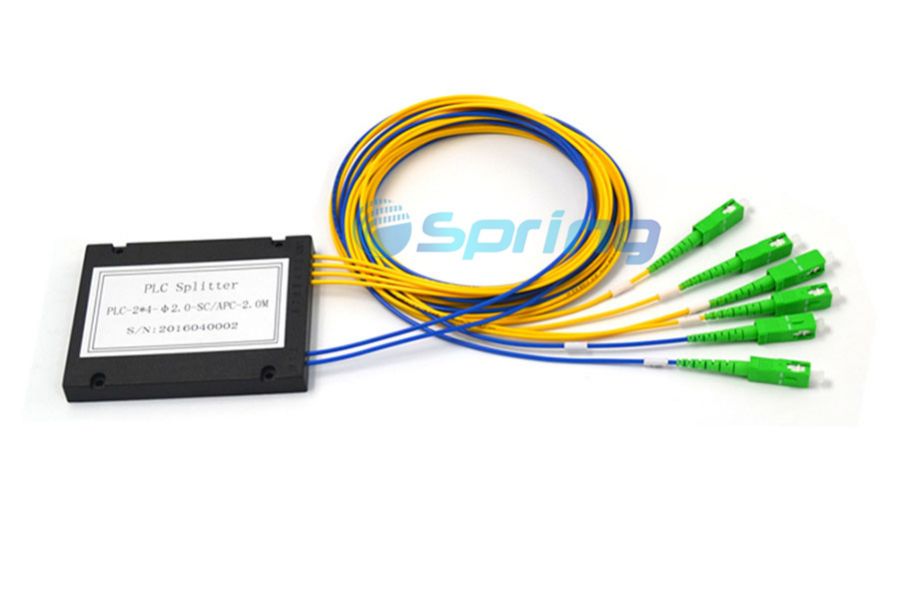

2×4 PLC Splitter (Measured at room temperature and excludes connector loss)

TYPE		2*4
Fiber Type		9/125 um or customer appoint
Operating Wavelength(nm)		1260～1650
Insertion Loss(dB)	Typical	7.4
	Max	7.8
Loss Uniformity(dB)	Max	1.4
Polariation Dependent Loss(dB)	Max	0.3
Directivity(dB)		≥55
Return Loss (dB)		UPC:50 APC:55
Operating Temperature (°C)		-40～+85	Storage Temperature (°C)

1×4 PLC Splitter (Measured at room temperature and includes connector loss)

TYPE		1*4
Fiber Type		9/125 um or customer appoint
Operating Wavelength(nm)		1260～1650
Insertion Loss(dB)	Typical	7
	Max	8
Loss Uniformity(dB)	Max	0.7
Polariation Dependent Loss(dB)	Max	0.2
Directivity(dB)		≥55
Return Loss (dB)		UPC:50 APC:55
Operating Temperature (°C)		-40～+85	Storage Temperature (°C)

2×4 PLC Splitter (Measured at room temperature and includes connector loss)

TYPE		2*4
Fiber Type		9/125 um or customer appoint
Operating Wavelength(nm)		1260～1650
Insertion Loss(dB)	Typical	7.9
	Max	8.3
Loss Uniformity(dB)	Max	1.4
Polariation Dependent Loss(dB)	Max	0.3
Directivity(dB)		≥55
Return Loss (dB)		UPC:50 APC:55
Operating Temperature (°C)		-40～+85	Storage Temperature (°C)
