Fiber 8 core Pre-terminated Fiber Distribution Box

Product Description

The exterior connectorized NAP/CTO box is used as a termination point for the feeder cable to connect with drop cable in FTTH network building. Compared to the traditional FDB box, the installation of pre connectorized termination box no need to open the box to assemble the optical connector, which can reduce the installation time and save labor cost. The pre-con box perfectly compatible with all kinds of SC fast connectors, based on the field assemble technology, the technicians can make the patch cord of any length according to their needs, no need polish. each connector can be completed within 2 minutes. High efficiency, reliable quality and cost-effective makes the preconnectorizado solution the best choice for telecom operator and ISP distributors.

Specification

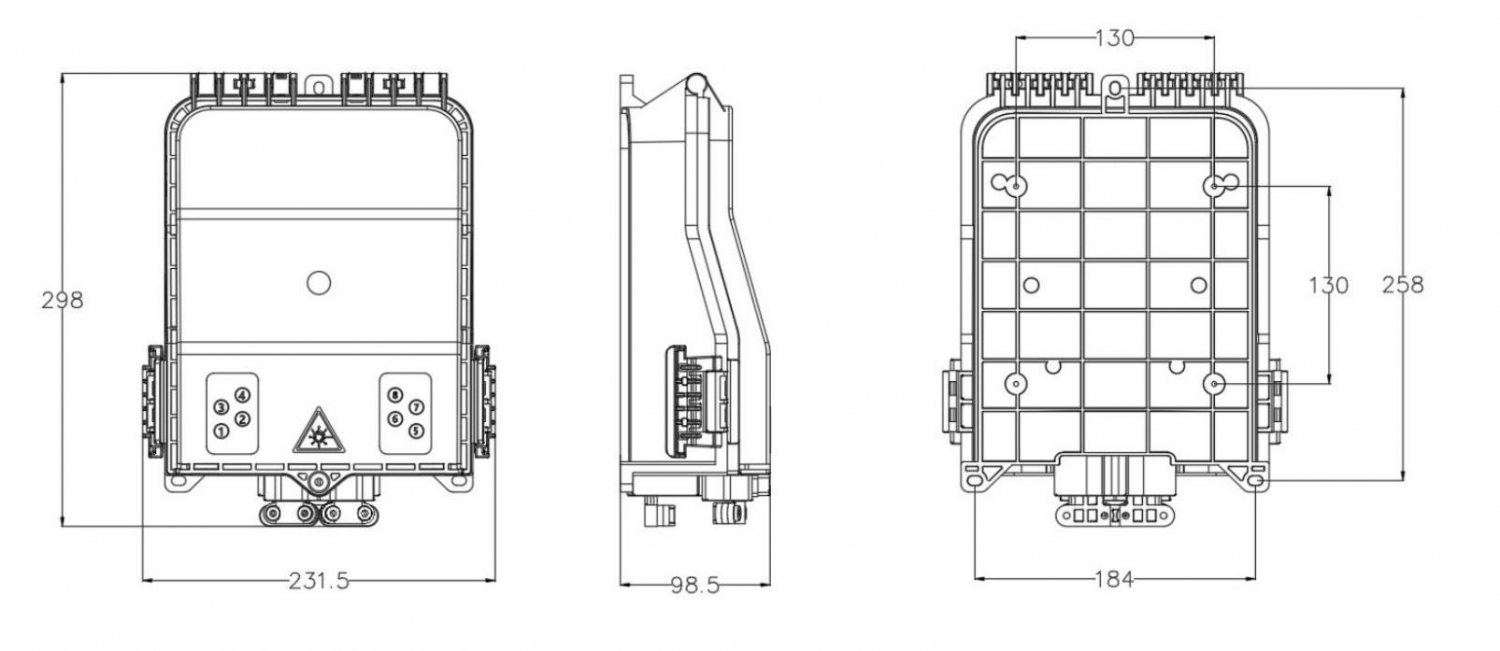

Dimensions	298×231.5×98.5 (tolerance ±3mm)
Material	PC/ABS Metal parts: SUS201/304
Flame retardant	Box material meets UL94-V0
Color	Black(product color can be customized according to customer requirements)
Installation method	Wall hanging/pole
Illustrate	1. The box lid can be customized with laser marking/silk screen printing exclusive LOGO according to customer requirements; 2. The box body is opened using a special-shaped lock; 3. The box body can accommodate 8 prefabricated end adapters; 4. The box body can support entry without cutting the cable; 5. The box body is equipped with two branch cable inlets; 6. The fiber trays are stacked in steps, making the cable management clearer; 7. The cable outlet is equipped with a protective cover for safer eye protection; 8. Protection level: IP65;

Accessory list
Serial number	Attachment description	Specifications and models	Configuration quantity	Unit	Remark
1	Heat shrink protective sleeve	1.2*60mm	72	Root
2	Nylon tie	2.5*100mm	15	Root
3	Insulation Tape	Black	3	Meter
4	φ4 bare fiber protection tube		0.5	Meter
5	φ4 serpentine winding tube		0.5	Meter
6	cleaning wipes		1	Pack
7	plastic expansion sleeve	φ4*30	3	Grain	Wall mounting/pole installation (optional)
8	ST3.9*34 cross recessed pan head self-tapping screws	SUS201	3	Grain
9	Pole mounting plate	SUS201	2	Piece
10	M4*6 cross recessed flat head screws	SUS201	4	Grain
11	75*235mm hoop	SUS201	2	Piece
12	Open tool		1	Piece	Can be equipped with special tools

Application
