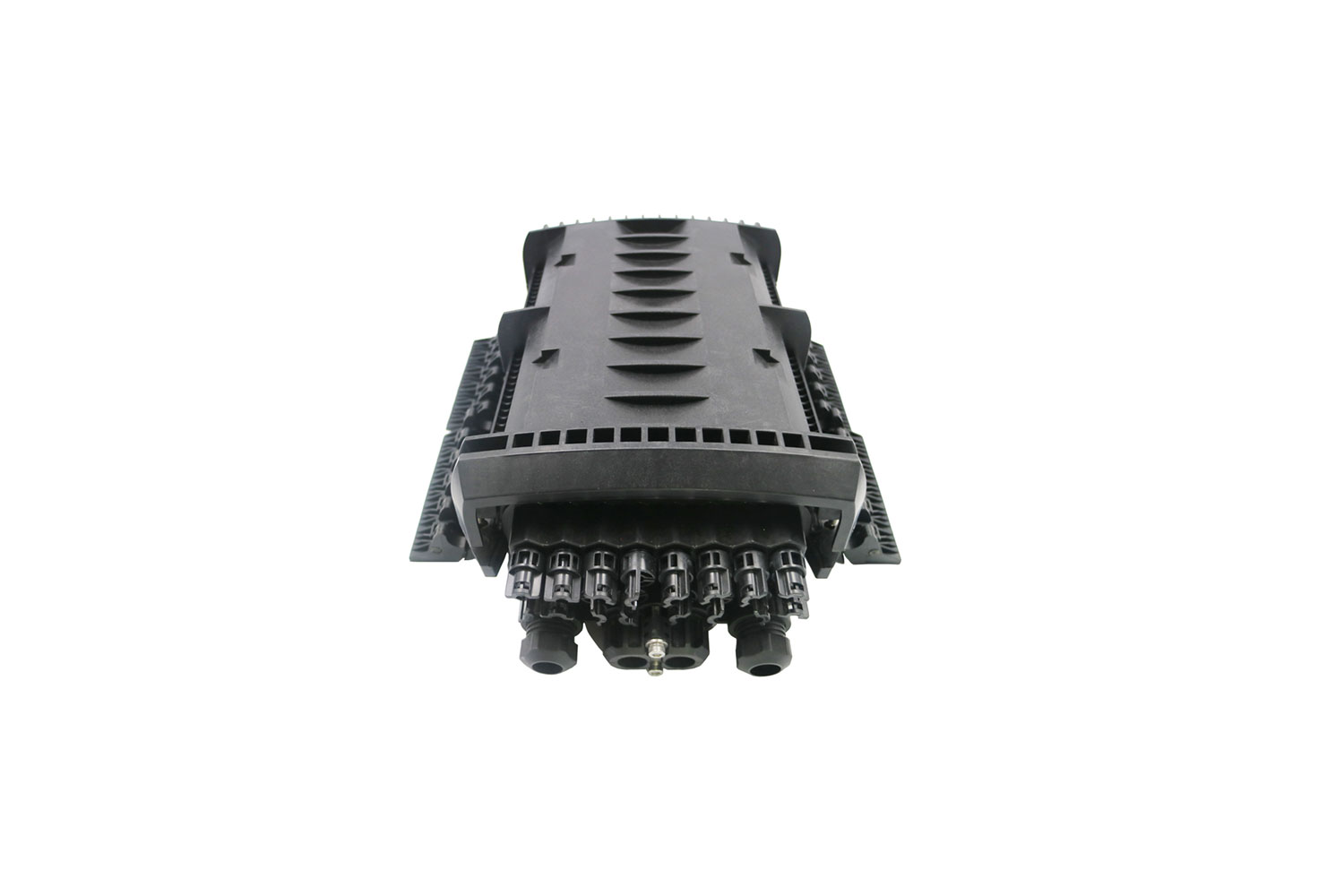

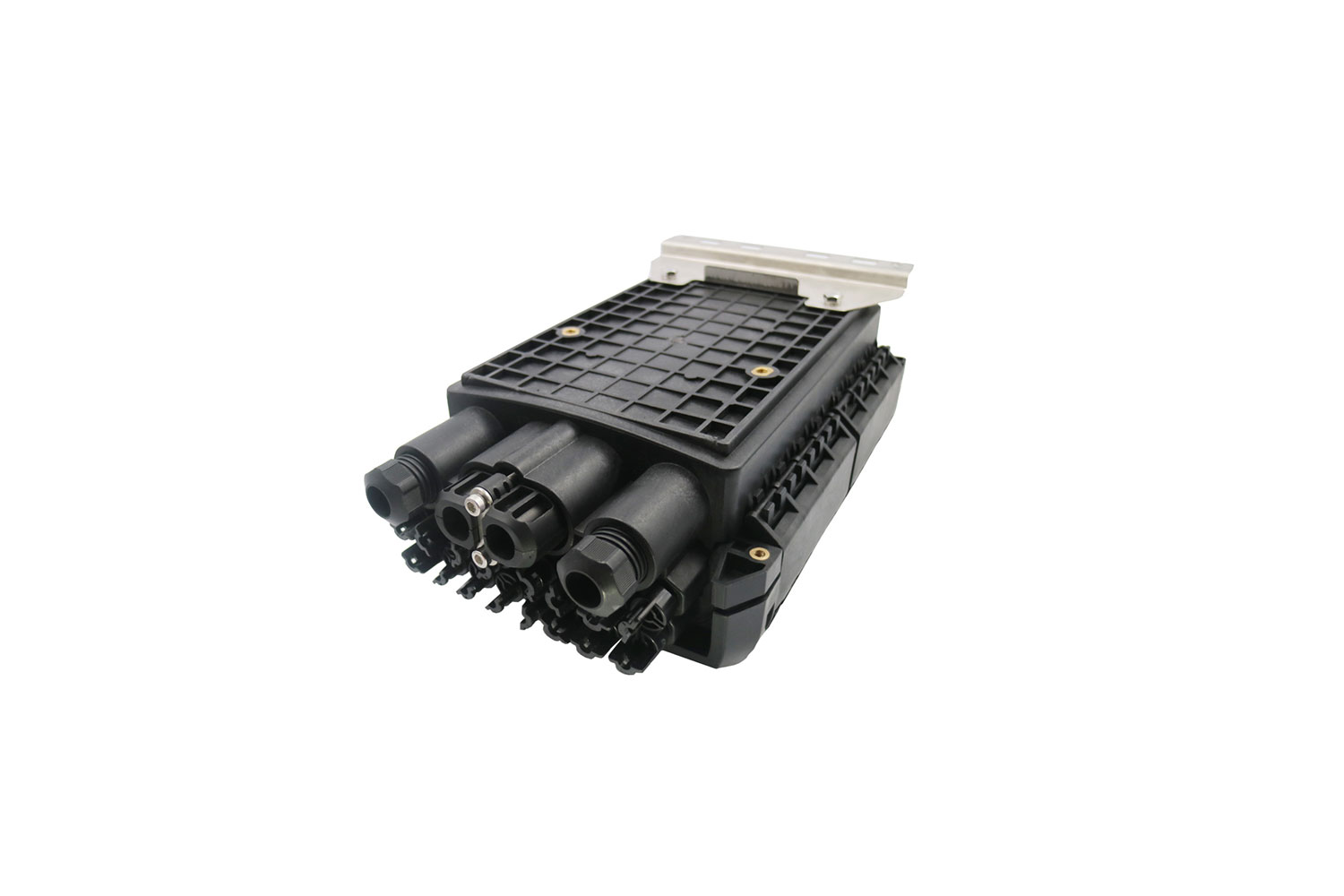

SP-GJSC-01 Fiber Optic Outdoor IP68 Splice Closure Max 96core

Product Model

SP-GJSC-01

Product Description

Fiber Optic Outdoor IP68 Splice Closure Model SP-GJSC-01 has a fiber access termination closure that is able to hold up to 16 subscribers and 96 splicing points as closure. It is used as a splicing closure and a termination point for the feeder cable to connect with the drop cable in the FTTx network system. It integrates fiber splicing, splitting, distribution, storage, and cable connection in one solid protection box.

Features

Fiber Optic Outdoor IP68 Splice Closure Model SP-GJSC-01

Features:

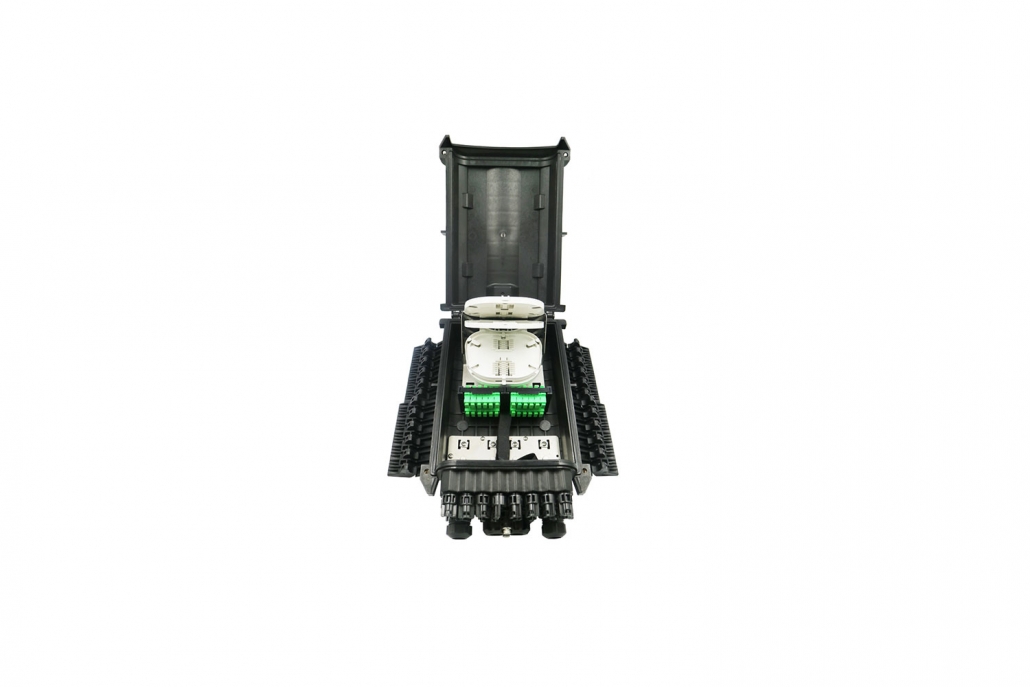

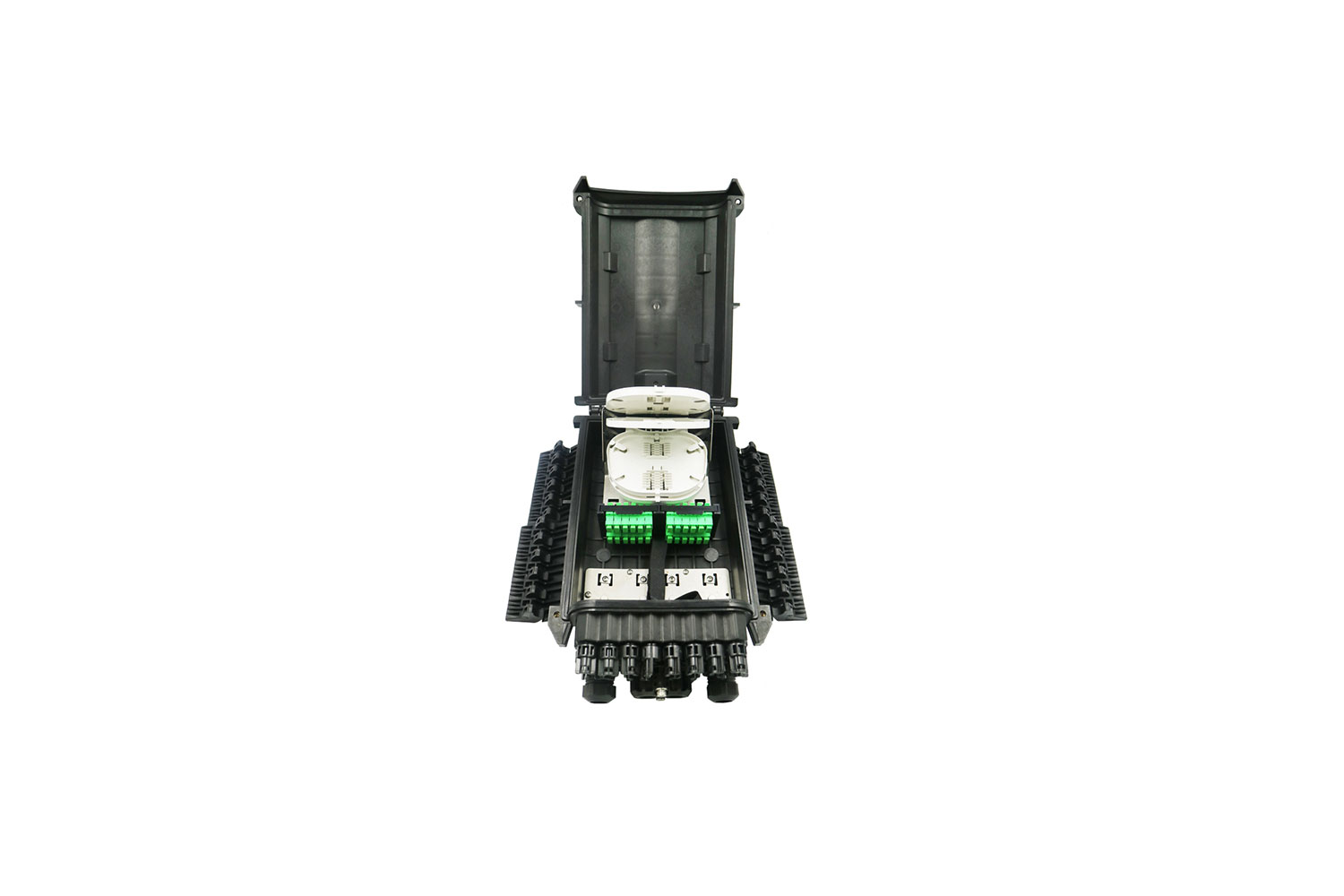

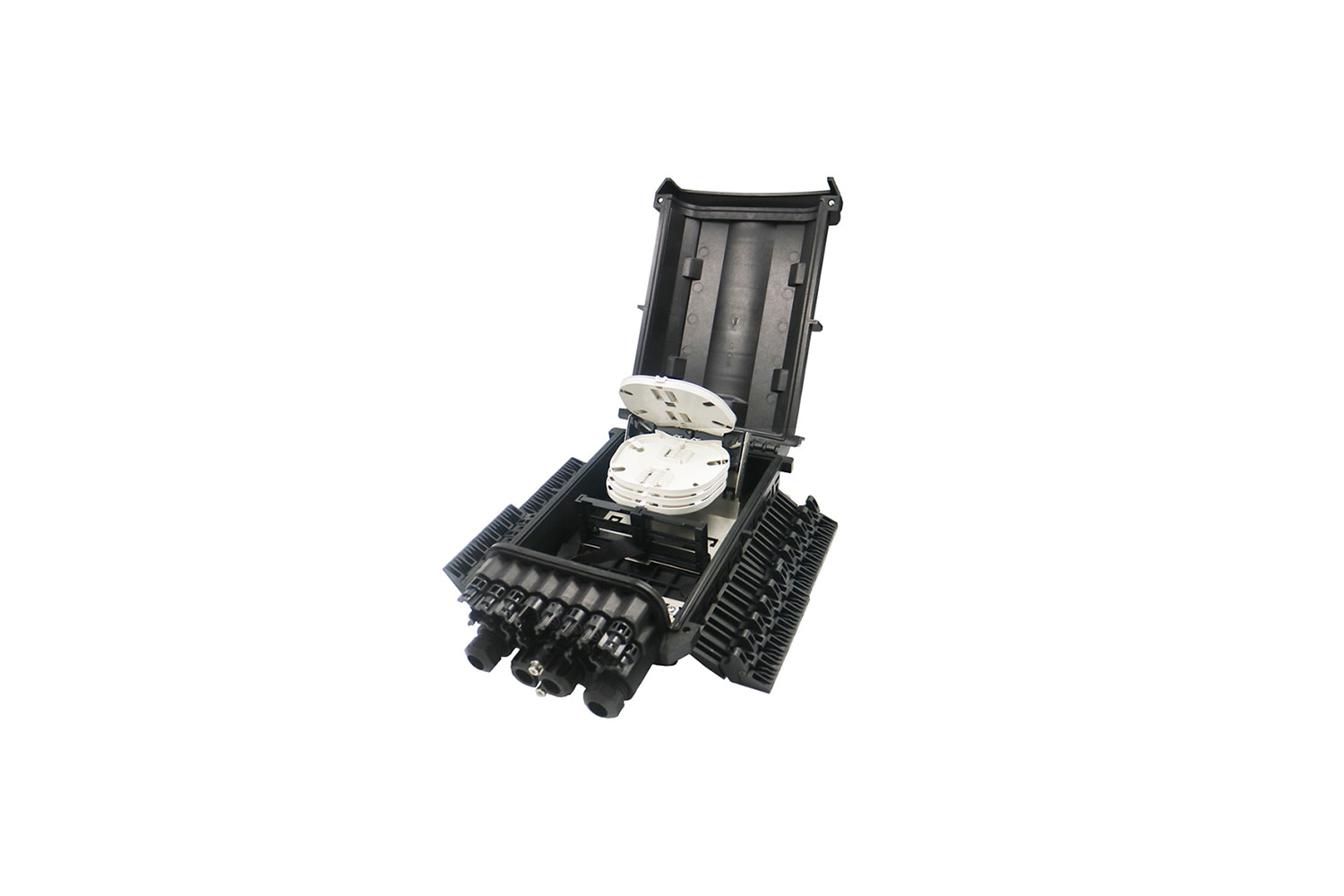

Water-proof design with IP-68 Protection level. Integrated with flap-up splice cassette and adaptor holder.
Impact test:IK10,Pull Force:100N,Full rugged design
All stainless metal plate and anti-rusting bolts,
Fiber bend radius control more than 40mm.
Suitable for the fusion splice or mechanical splice.
2 pcs of 1*8 Splitter can be installed as an option. Mechanical sealing structure and mid-span cable entry.
16 ports cable entrance for drop cable . 24 adaptors for drop cable patching

Dimension

Applications

Download

Material	Size(mm)	Max Capacity		No. of adapter	Weight	Color
Strengthen Polymer Plastic	*385245130*	Splice 96 Fibers(4trays,24fiber/tray)	PLC Splitter 2pcs of 1×8	24pcs SC Simplex adapter	4.5kg	Black

SP-GJSC-01 Fiber Optic Outdoor IP68 Splice Closure Max 96core

Fiber Optic Outdoor IP68 Splice Closure Model SP-GJSC-01

Fiber Optic Outdoor IP68 Splice Closure Model SP-GJSC-01
