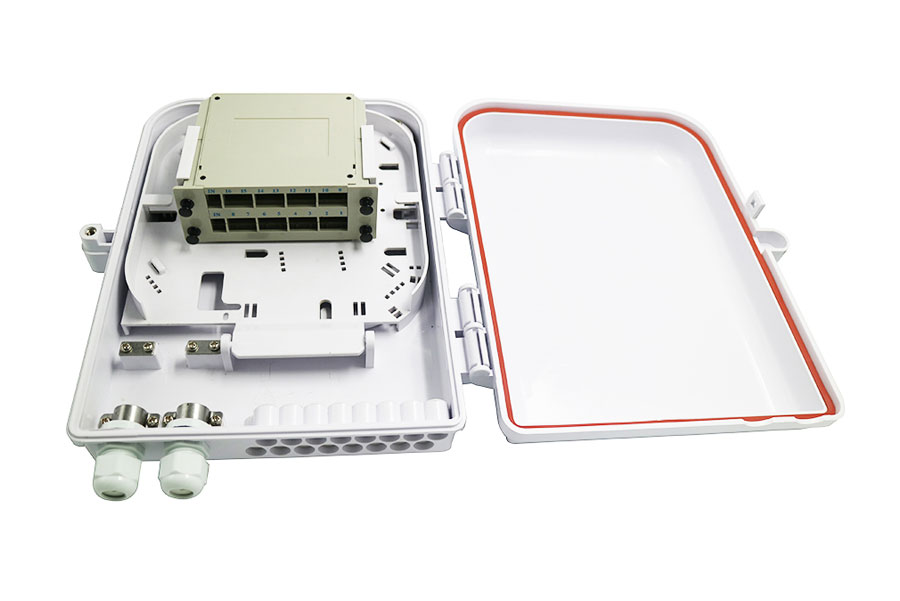

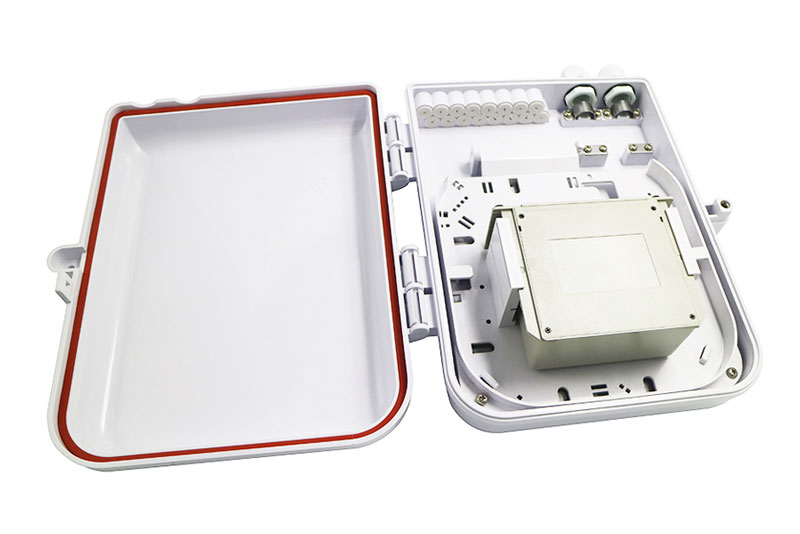

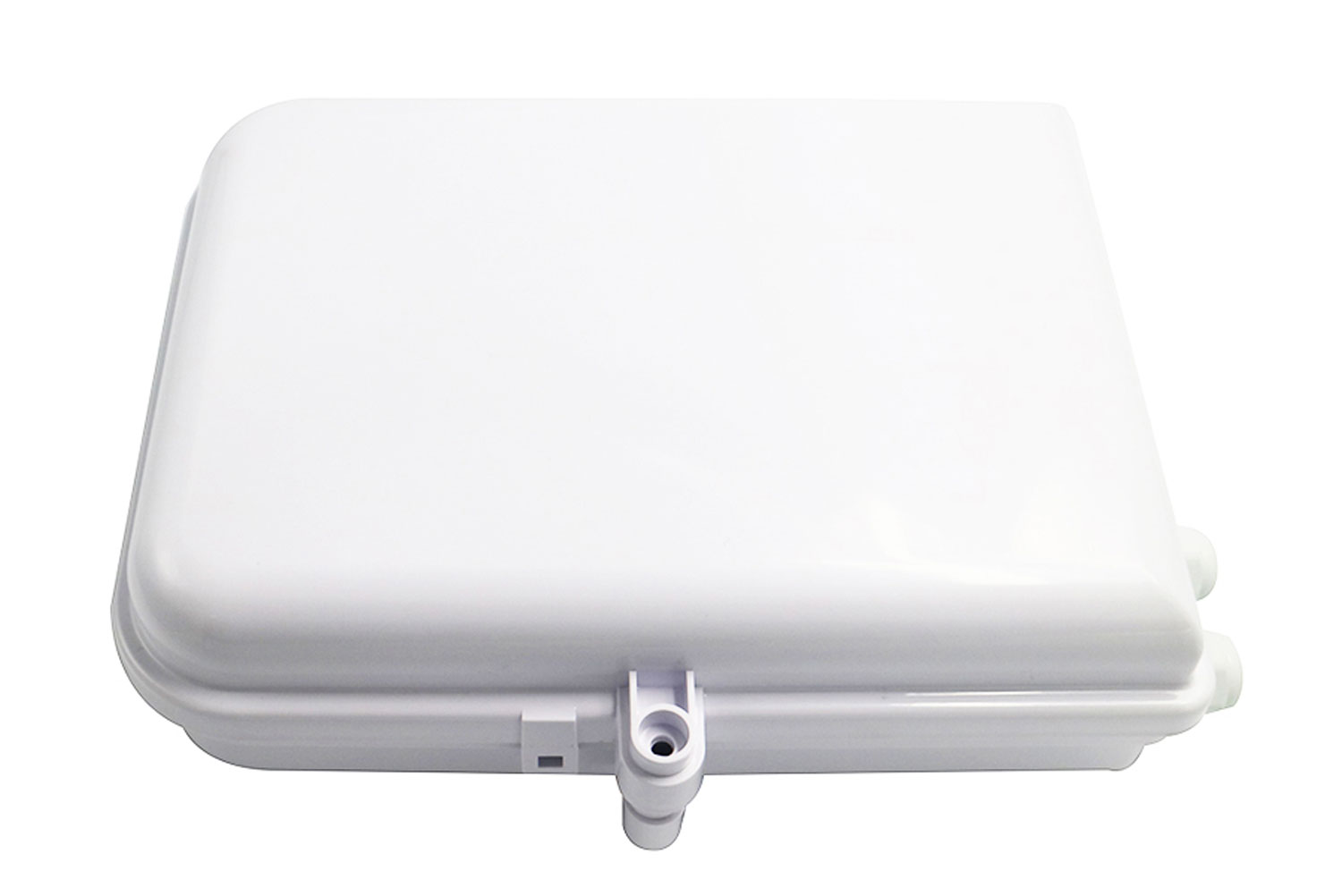

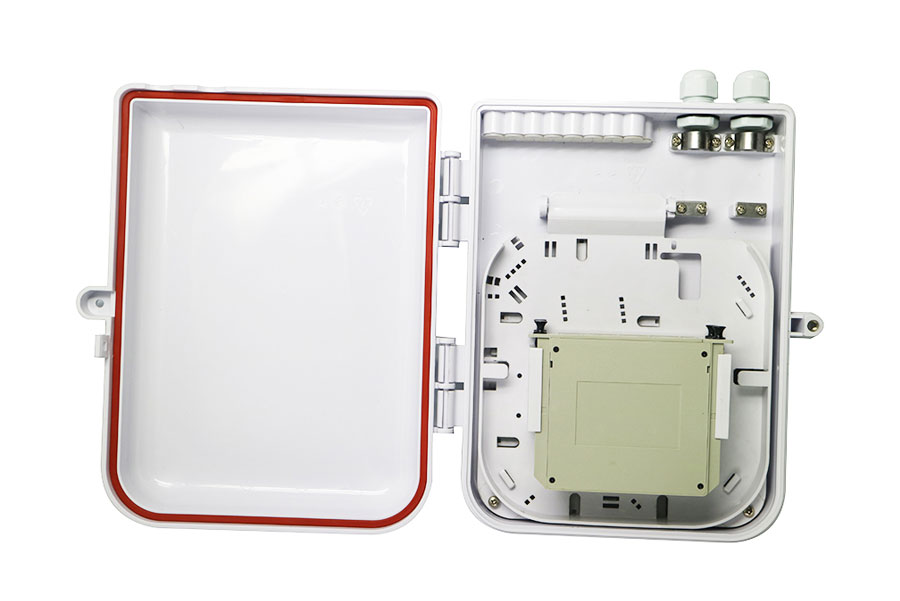

FTTH Fiber Optical 16 Port Wall Mounted Distribution Box with LGX Box

Product Model

SP-1606-16B

Product Description

This box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.

It intergates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building.

Features

Features:

Total enclosed structure, be in niceshape
Protects and manages cableeffectively
Secured with anti-theft lockingmechanism
Standard size, light weight
High quality material
Good properties of dust, and moistureproofing
Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution…etc all inone
Suitable for SC and LC duplex adaptor andpigtail
Easy tooperate
Wall and pole mountable (accessoriesoptional)
Suitable for both outdoor and indooruse

Specification

Specification:

Work Temperature	-40 ⁰C ~+75 ⁰C
Relative Humidity	≤ 85% (+30 ⁰C)
Atmospheric Pressure	70Kpa~106Kpa
Insert Loss	≤ 0.2dB
UPC Return Loss	≥ 50dB
APC Return Loss	≥ 60dB
Insert and Pull out Life	≥ 1000 times
Insulation	The grounding device is insulated with the Termination box, IR ≥1000m Ω/500V (direct current)
Withstand Voltage	Between the grounding device and the box body, the withstand voltage is over 3000V/Min, no breakdown and flash-over. U ≥3000V (direct current)
