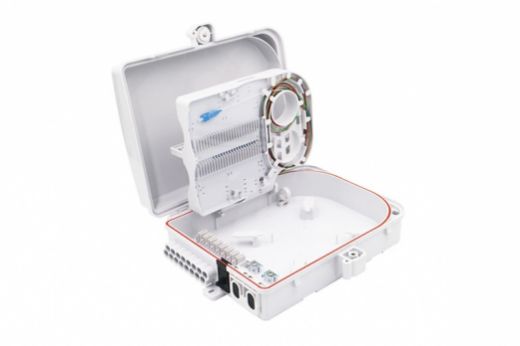

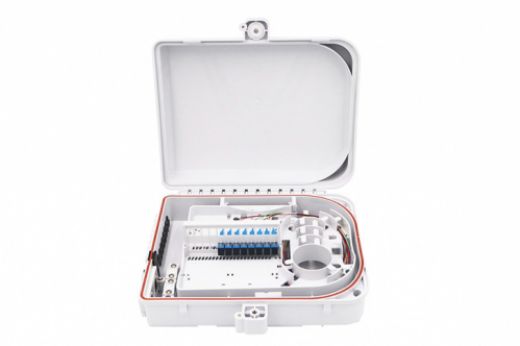

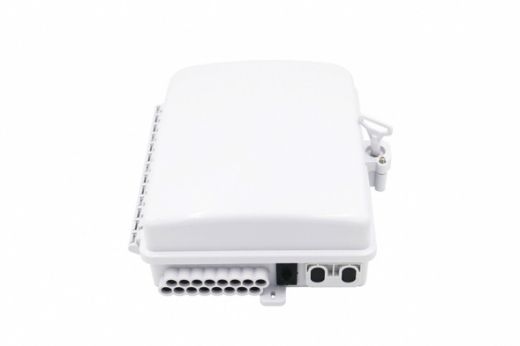

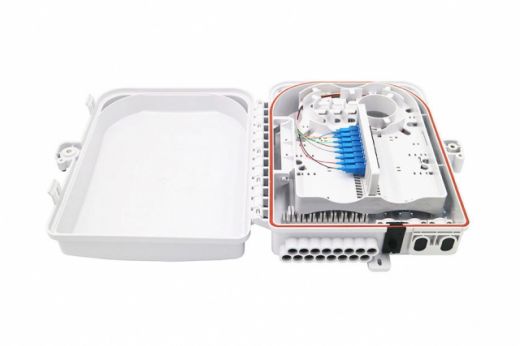

FTTH Outdoor Termination Box 24 Core Optical Fiber Distribution Box

Product Model

SP-FDB-0324

Product Description

The FDB is made of high strength materials,UV resistance,waterproof,maximum capacity up to 24cores,with perfect space design,a variety of PLC splitter can be installed,it can be used in indoor and outdoor environment,safe,reliable,cost-effective,and provide the best solutions for FTTH optical access networks.

Features

Features:

Total enclosed structure, be in nice shape
Protects and manages cable effectively
Secured with anti-theft locking mechanism
Standard size, light weight
High quality PC +ABS material
Good properties of dust, and moisture proofing,IP65
Clamping for feeder cable and drop cable, fiber splicing, fixation,storage, distribution…etc all in one
Suitable for SC and LC duplex adaptor and pigtail
Easy to operate
Wall and pole mountable (accessories optional)
Suitable for both outdoor and indoor use

Specification

Specification:

Dimension(LxWxH)	335×295.5×117.2mm
Cable entries	♦3 Nos. φ12mm ports: 2ports are suitable for inlet/outlet 1 No. φ6-8mm cable for mid-span,1 port is suitable for φ6-8mm cable branching. ♦16 Nos. for 2x3mm drop cable
Splicing Tray	12/24 fiber per tray
Max.capacity	24cores
Material	ABS or PC+ABS can be choose
PLC splitter	2 Nos. 1:8(or 2:8) Module/cassette/Blockless/Bare PLC splitter
No. of Adapter	Max. SC/APC Adapter 24pcs
IP rating	IP65
