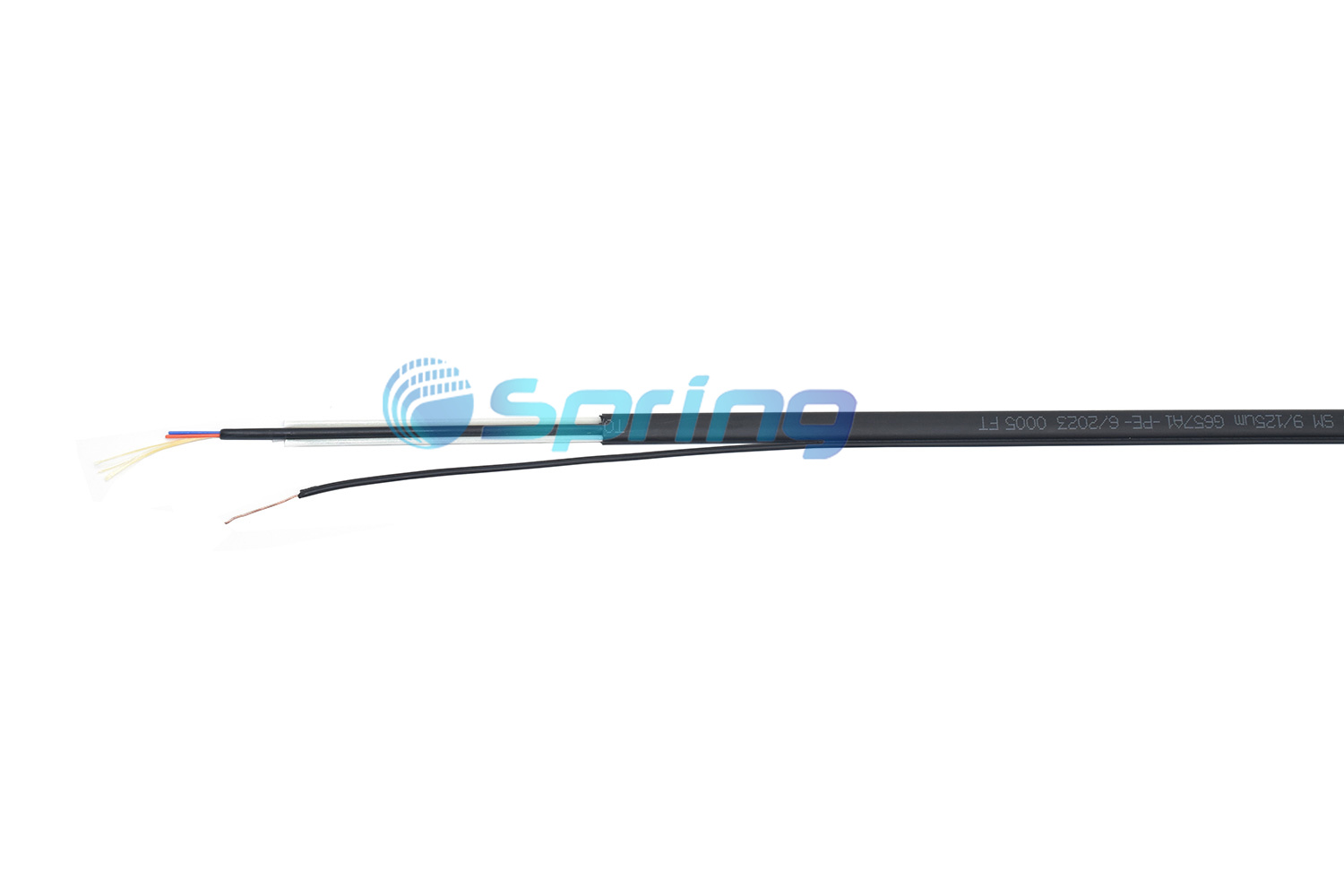

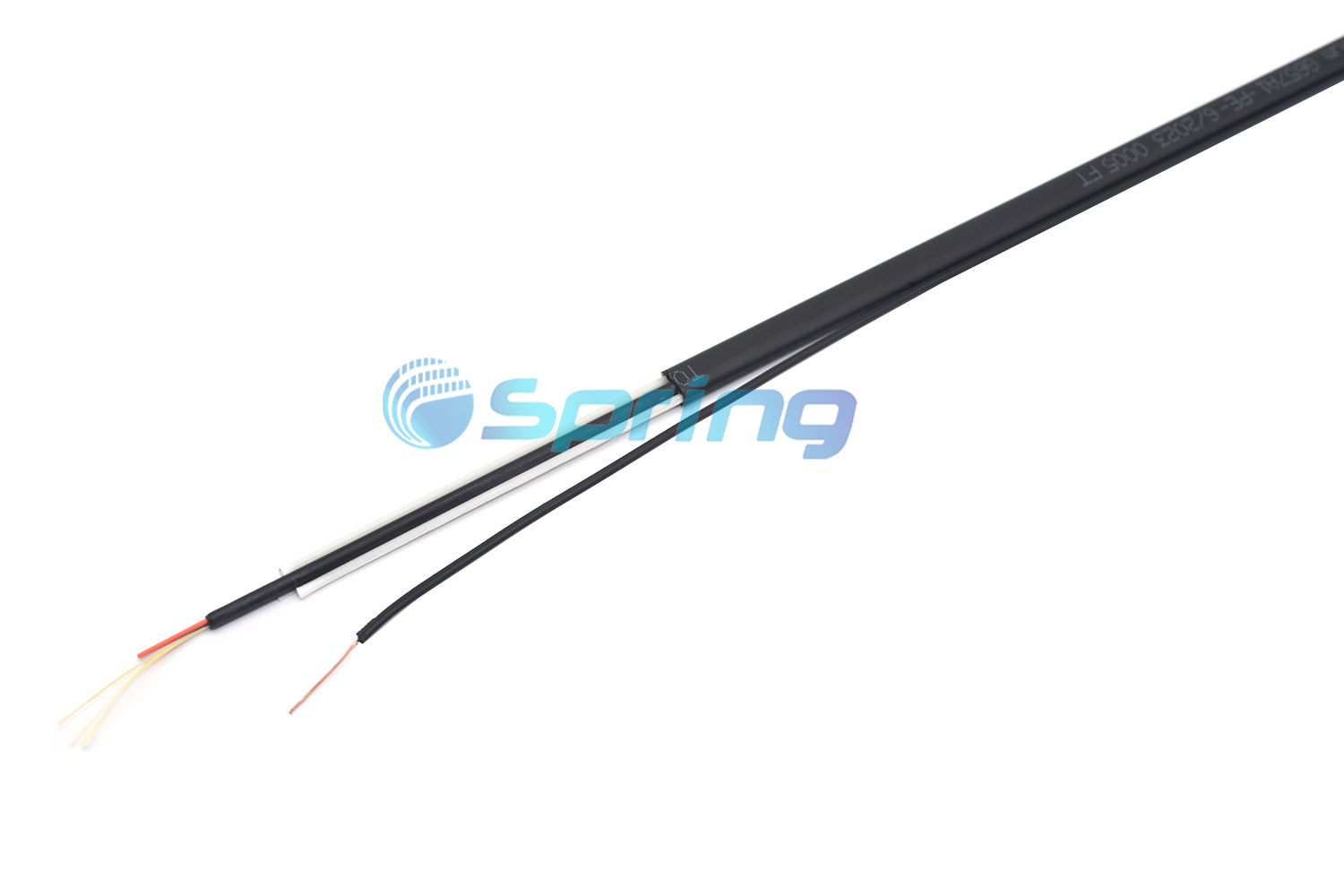

GYFJBC8Y 4.5*9.8mm Toneable SST Fiber Drop Cables With Copper Tracer Wire

Product Model

GYFJBC8Y 4.5*9.8mm Toneable SST Fiber Drop

Product Description

SST-Drop dielectric cables offer the ease of installation of standard ALTOS cables in an easy-access, single-tube design. The dielectric version eliminates any bonding and grounding requirements. The cables are RDUP (RUS) listed and offer exceptional crush resistance. Available in preconnectorized assemblies, the SST-Drop dielectric cable offers the perfect solution for drop applications.

Features

Standard practices and hardware compatibility
Fiber protection and signal integrity
Material acceptability
Eliminates bonding and grounding requirements
Improves ease of handling and installation; reduces transportation and storage costs

Specification

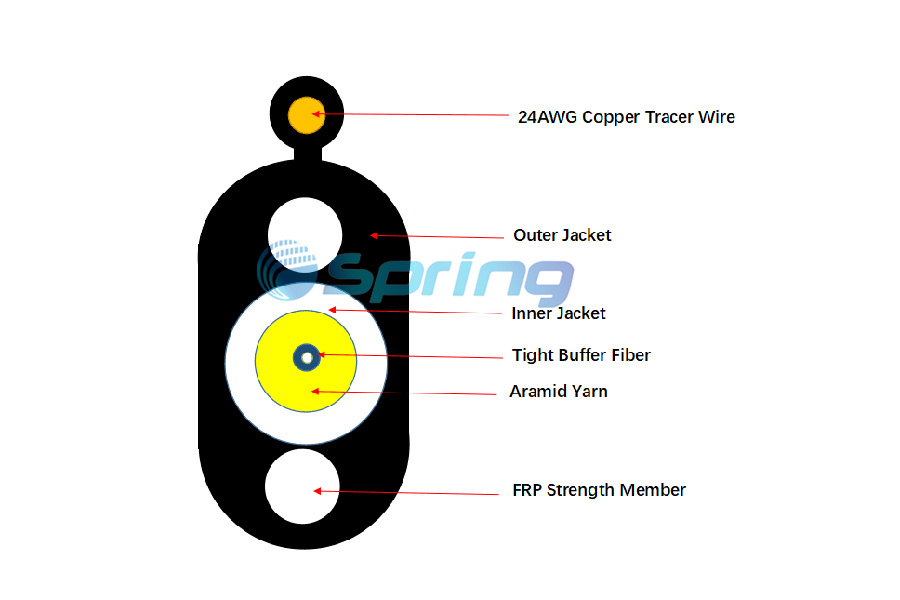

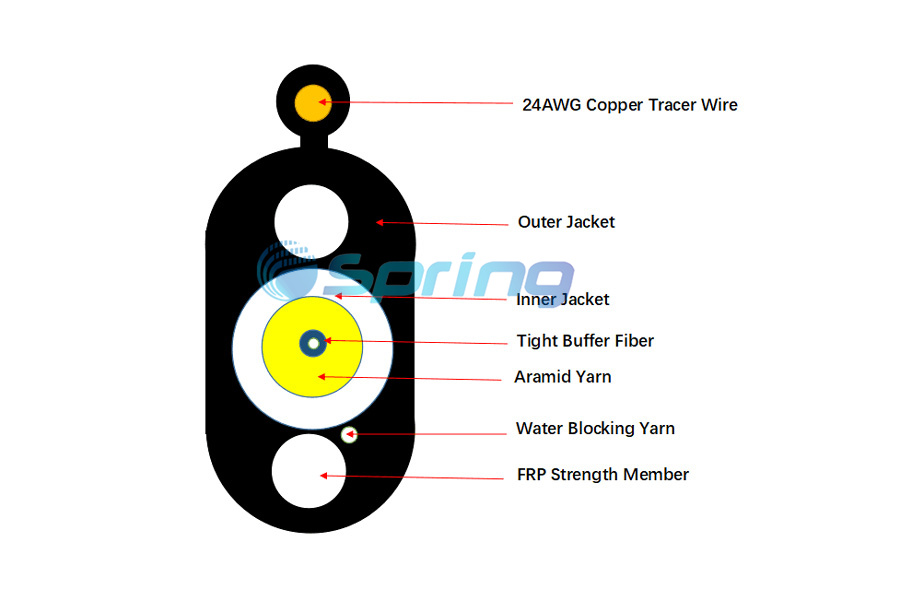

Cable Structures:

ITEMS		DESCRIPTION
Fiber count		1
Tight buffer	OD(mm):	0.9±0.05
	Material：	LSZH
In Sheath	OD(mm):	3.0
	Material：	LSZH
Strength member		Aramid yarn
Water Block Material：		Water blocking yarn
Strength member		G-FRP-1.6mm
Sheath	Thickness:	Non. 0.8mm
	Material：	HDPE
OD of cable (mm)		4.5*9.8mm±0.3
Net weight ( kg/km)		43

Optical Fiber:

ITEMS	UNITS	SPECIFICATION
Fiber type		G652D		G657A
Attenuation	dB/km	1310nm ≤ 0.36 1550nm ≤ 0.22
Chromatic Dispersion	ps/nm.km	1310nm≤ 3.5 1550nm≤ 18 1625nm≤ 22
Zero Dispersion Slope	ps/nm².km	≤ 0.092
Zero Dispersion Wavelength	nm	1300 ~ 1324
Cut-off Wavelength (lcc)	nm	≤ 1260
Attenuation vs. Bending (60mm x100turns)	dB	(30mm radius,100ring )≤ 0.1 @ 1625nm	(10mm radius,1ring)≤ 1.5 @ 1625nm
Mode Field Diameter	mm	9.2 ± 0.4 at 1310nm	9.2 ± 0.4 at 1310nm
Core-Clad Concentricity	mm	≤ 0.5	≤ 0.5
Cladding Diameter	mm	125±1	125±1
Cladding Non-circularity	%	≤ 0.8	≤ 0.8
Coating Diameter	mm	245±5	245±5
Proof Test	Gpa	≥ 0.69	≥ 0.69

Application
