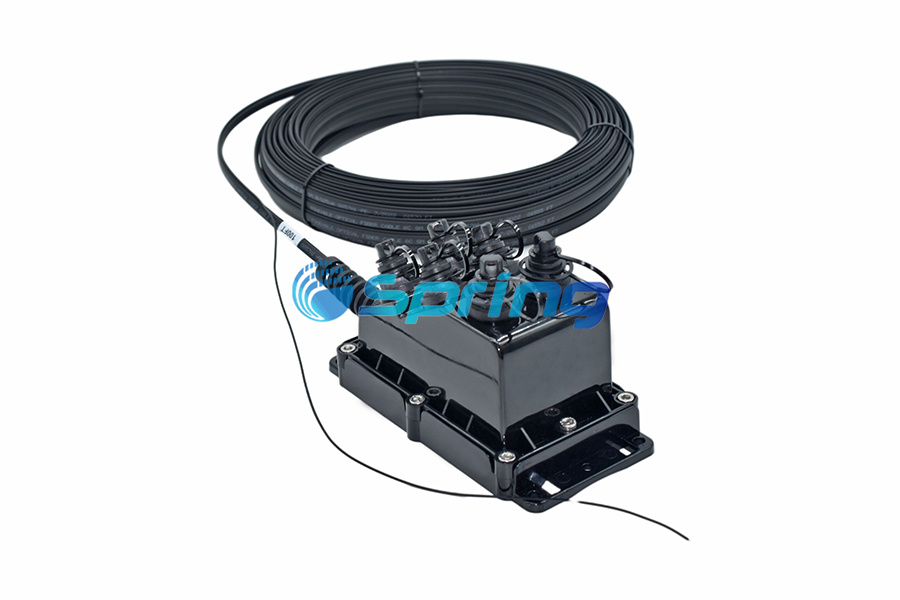

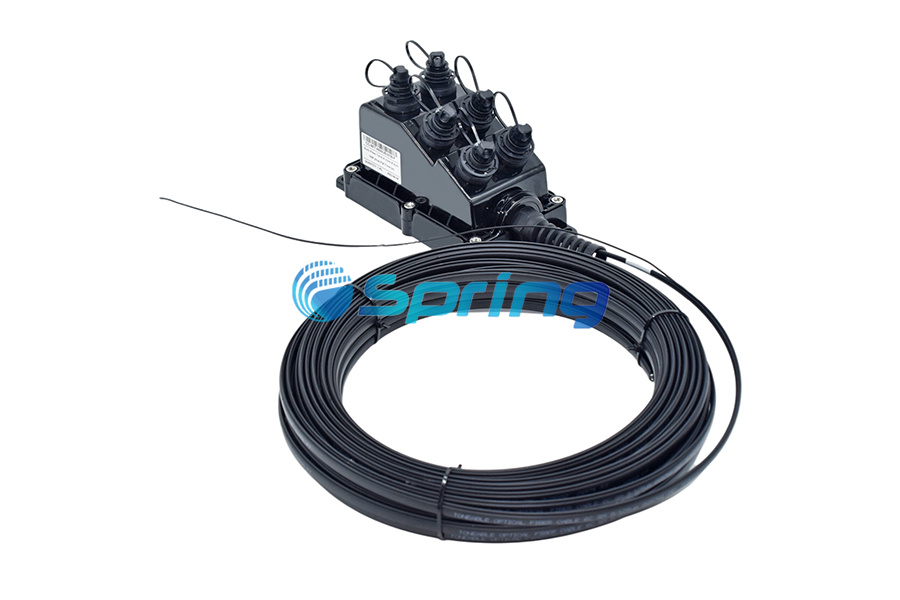

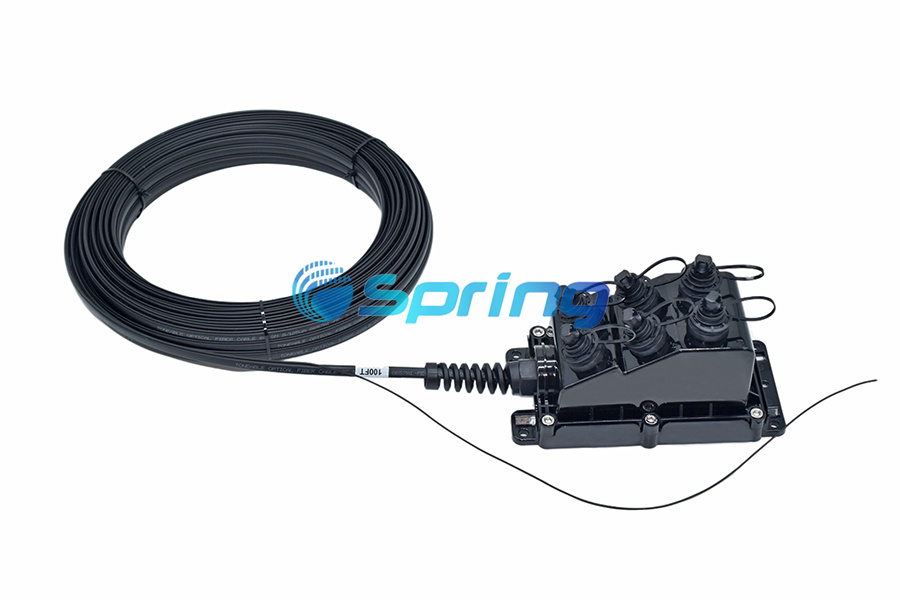

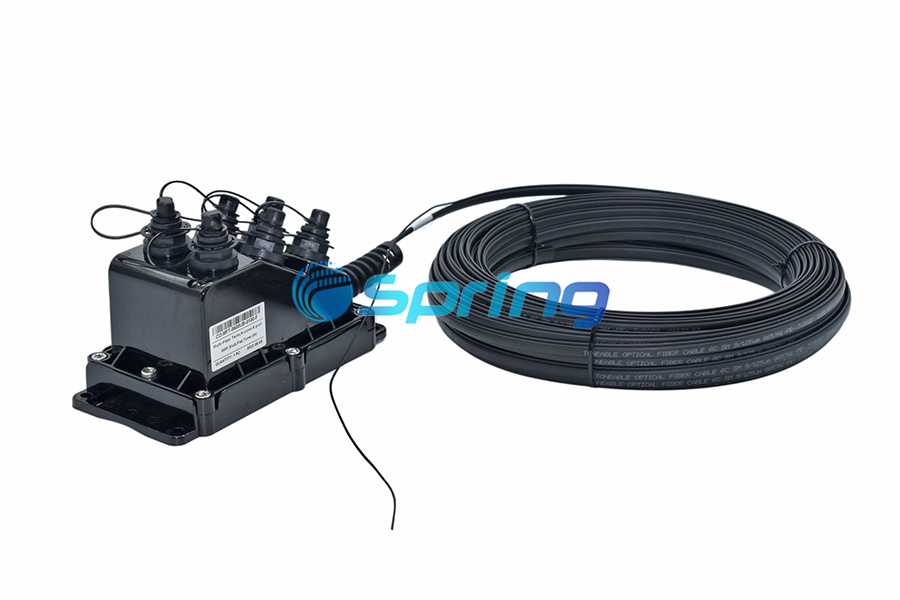

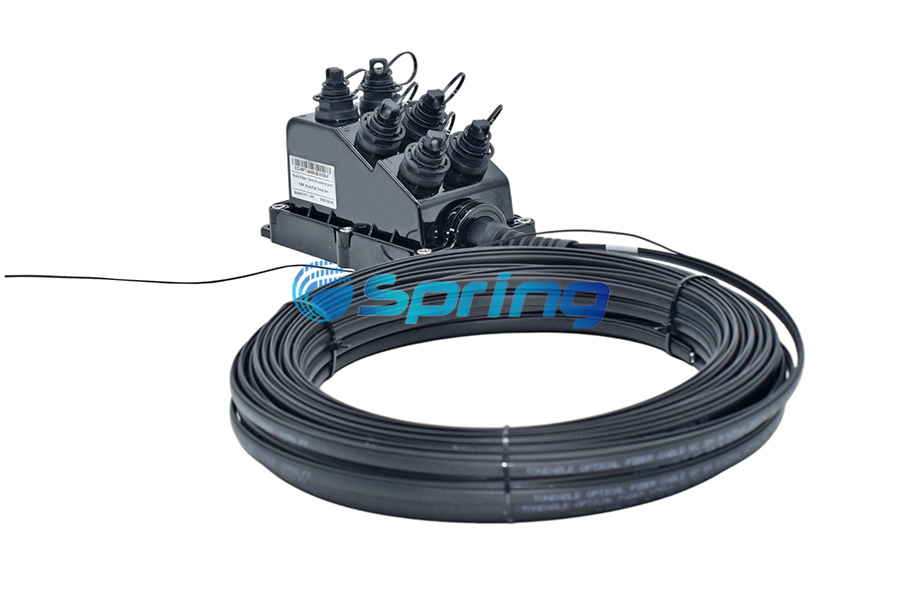

Multiport Splitter Terminal With SuperTap Single-Tube Cable Jumpers

Product Description

FiberHub is a new economic fiber distributed solutions for outdoor use. Compare traditional products, FiberHub is easy to operate and has high compatibility. It can be used for wall-mounting, aerial installation or holding pole installationi, based on different situation. FiberHub not only used in FTTH field, but also used in FTTA or other harsh environment field. Spring Optic’s hinged closure is a piece of versatile fiber optic connection equipment with reasonable interior structural design. It is mainly employed in the optical communication links for straight joint and distribution and relevant protection.

Features

The Multi Service Terminal incorporates hardened adapters and are SuperTap. Allowing for rapid tower and FTTH deployments, the MSTs are fully IP68 rated to fully withstand the rigors of outdoor deployment in all environments. Each MST comes with easy deployment mount allowing wall mounting or for pole mounting.

Features:

Each box can be fully assembled to reduce the need for opening and opening the field in the field.
Hardened connectors are factory-terminated and environmentally sealed for use in optical drop cable deployments
Plug-and-play adapter ports ensure rapid cable installment in the outside plant access section of the network
Multiport Service Terminals incorporate hardened connector technology that is designed to withstand the rugged outside plant environment
Factory terminated IP68 rated, high quality, high performance connectors.

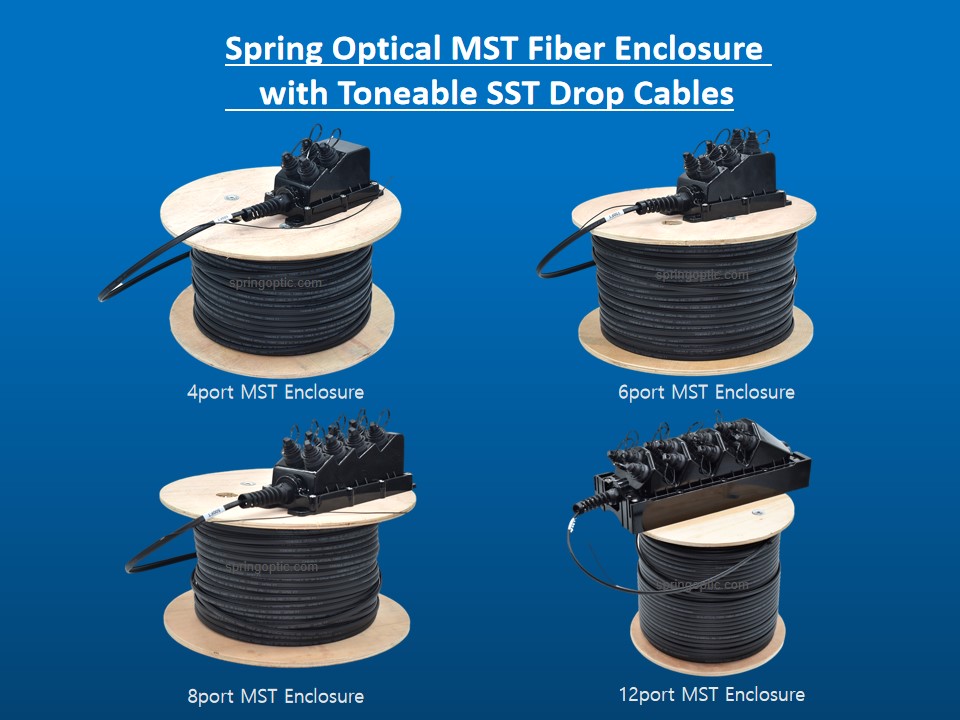

Flexible choice of ports: 2, 4, 6, 8 terminals are available.
Kind of mounting bracket allowing for a wide range of mount options.

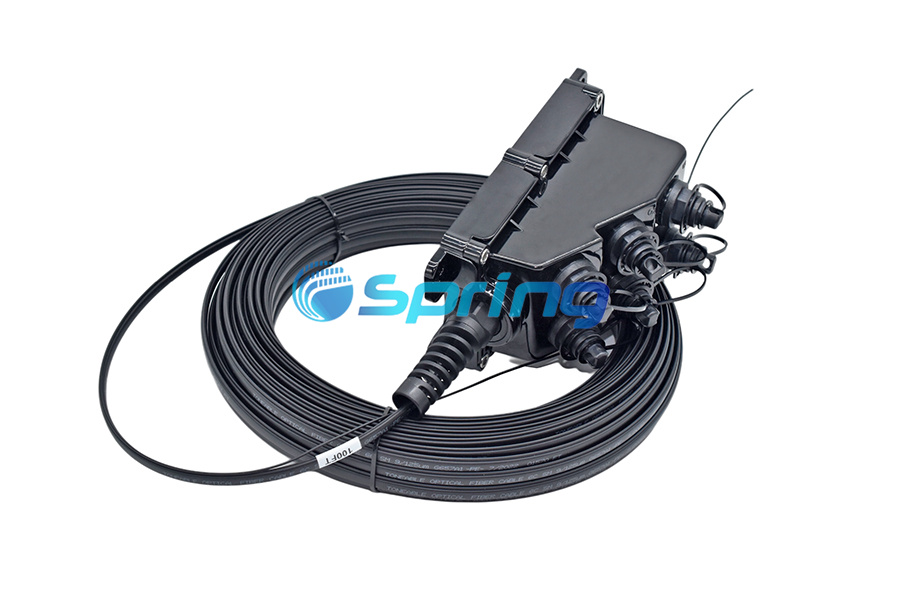

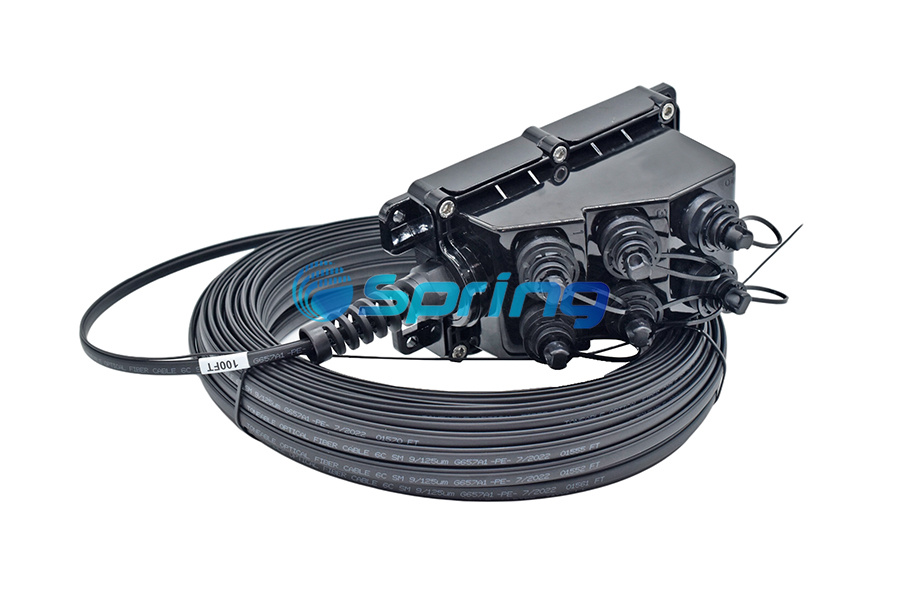

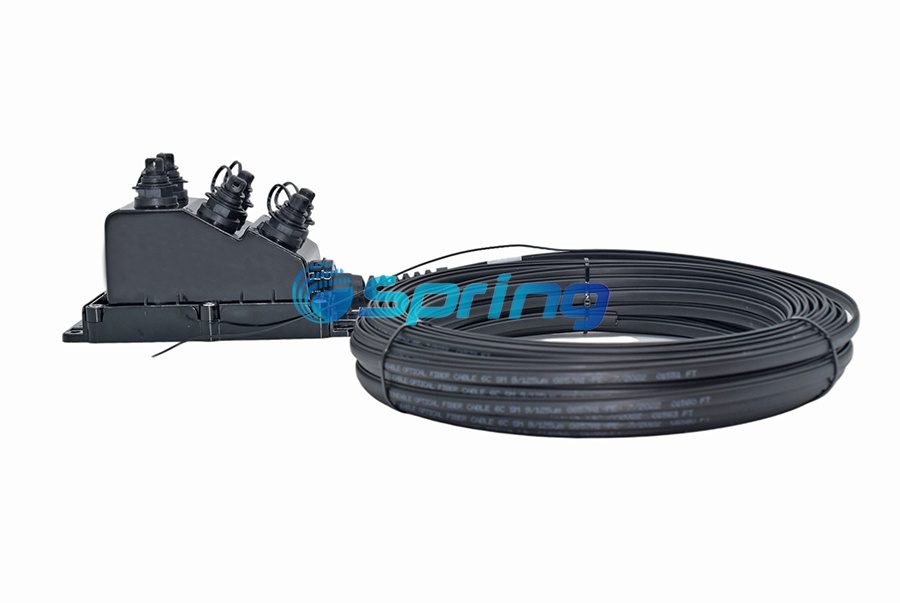

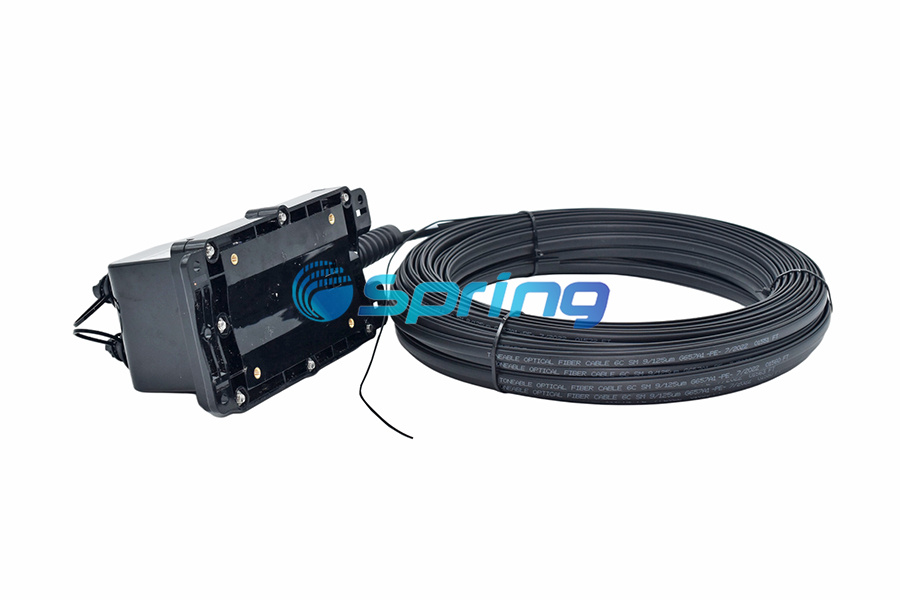

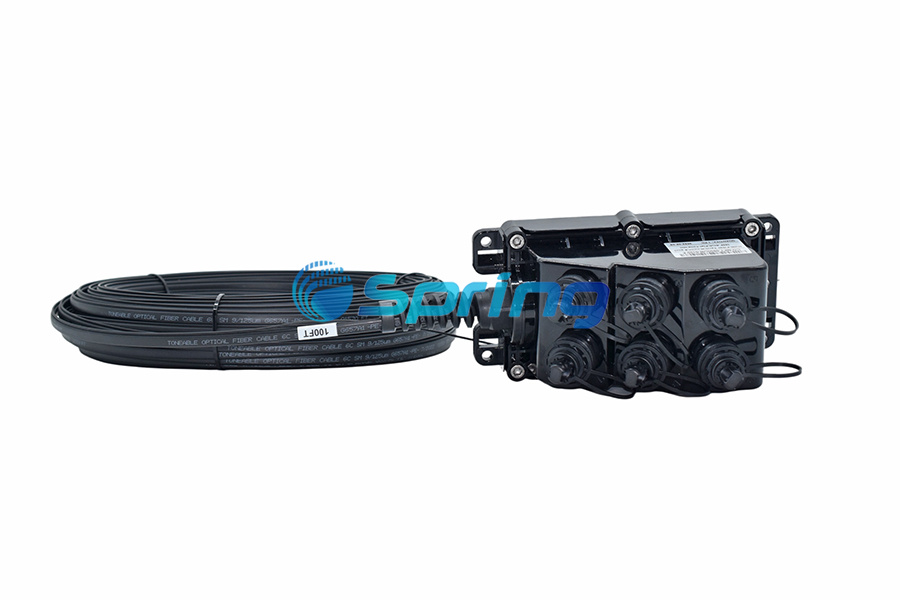

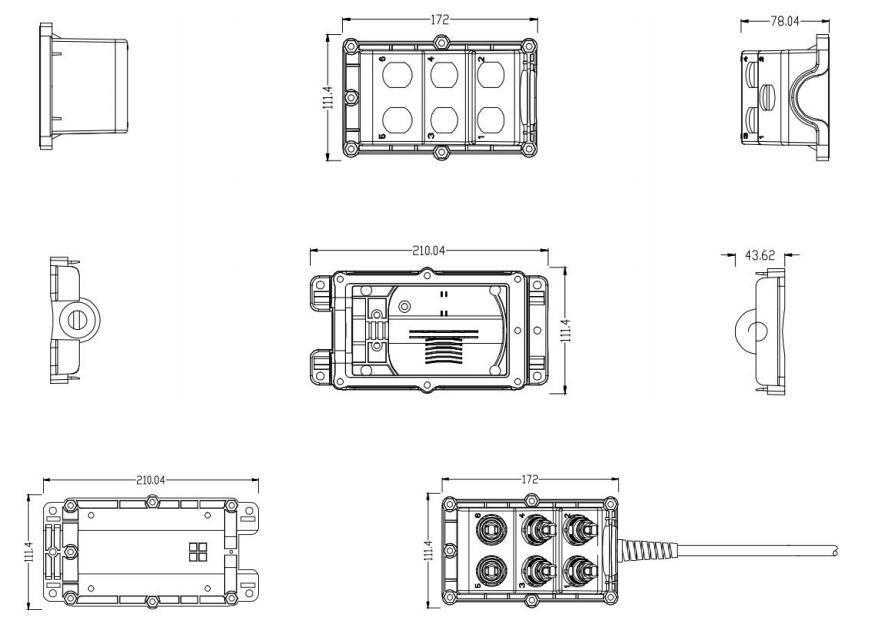

6Port MST Box Drawing paper:

Specification

Specifications:

Port	2, 4, 5, 6, 8, 12
Product Type	Access Terminal
IP Rate	IP 68
Components Compliant	RoHS
Operating Temperature	-40 to +85℃
Adapter	SuperTap SC, SuperTap LC Duplex,SuperTap MPO
Entrance	Cable gland or SuperTap Adapter
Feed cable	1, 2, 4, 6, 8 coreS for options
Feed cable length	Customized
Stub Type	Stub Tail
Mounting Method	Handhole, Pedestal, Pole, Strand, Aerial

Cable Specification:

Cable Type	Flat drop cable
Cable Size	3.0×4.5mm; 4x7mm; 4.5×8.1mm; 4.5×9.8mm
Cable Quantity	1
Cable Stub Length	50meter to customized
Attenuation, maximum	0.30 dB/km @ 1550 nm \| 0.40 dB/km @ 1310 nm
Directivity, minimum	60 dB
Wavelength Range	1260–1635 nm
Insertion Loss, Terminal Connector, max	0.4dB
Return Loss, Connector, minimum	65dB

Application

Download

GETTING MORE DETAILS AND SPECIAL PRICE FROM US

Multiport Splitter Terminal With SuperTap Single-Tube Cable Jumpers

Related Products

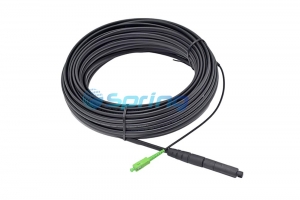

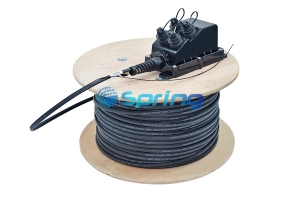

MINI SuperTap Fiber Cable Assemblies for FTTx Solutions

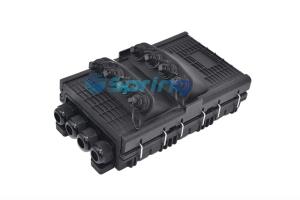

Optical Terminal Enclosure with 8port Hardened Adapters

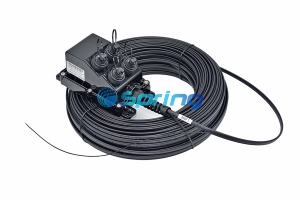

Multi Subscriber Terminals MST Cable Assembly Handhole
