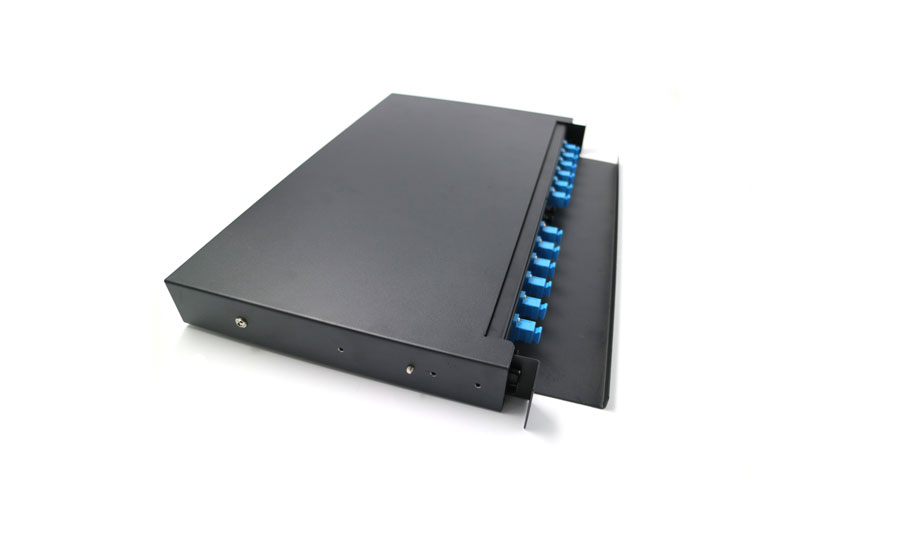

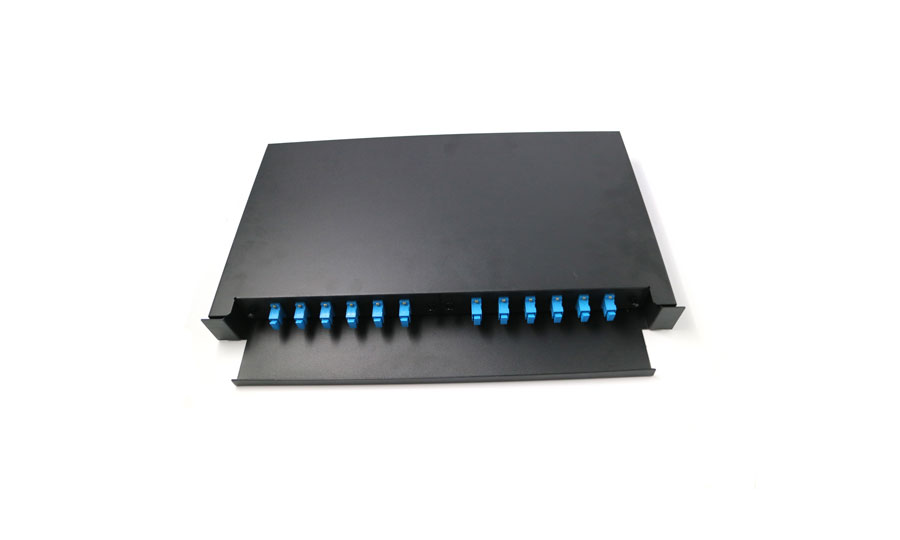

SC 12Port SC UPC Simplex Sliding Fiber Optic Patch Panel

Product Model

SP-CLA-12P-SC

Product Description

Springoptic’s Slidable fiber patch panel can applied in branch connection of optical cable termination;19″standard structure,sliding design,rack mounted;Suitable for FC,SC,ST,LC Adapters.The GPZ/SP-CLA fiber Optic Patch Panel is a kind of fiber optic management products used to distribute and protect the optical fiber links in FTTH Network. It is available for the distribution and terminal connection of various kinds of optical fiber system. These units are available in sizes that fit the most common distribution requirements.

Features

Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite and easy for operation
The box has a pothook, which is convenient to install and dismantle
The splice tray could be piled one upon another, flexible to turn; the curve radius of the coiled spear fibers should be guaranteed to be over 37.5mm in the splice tray
The box is of unique structure, reasonable layout, and has adequate room for operation
Adjustable clamp seal ring and reinforce configuration, which could adjust different sizes of cables flexibly to make sure the cables are clamp tightly
The indoor type is of excellent seal performance, which could prevent water from entering effectively
Can be installed with LC adapter
Up to 12 cores splice capacity
Sliding design

Specification

1.simplex port fiber optic patch panel
2.LC simplex or duplex port
3.19”, 23” standard size
4.sliding-out type
5.OEM/ODM

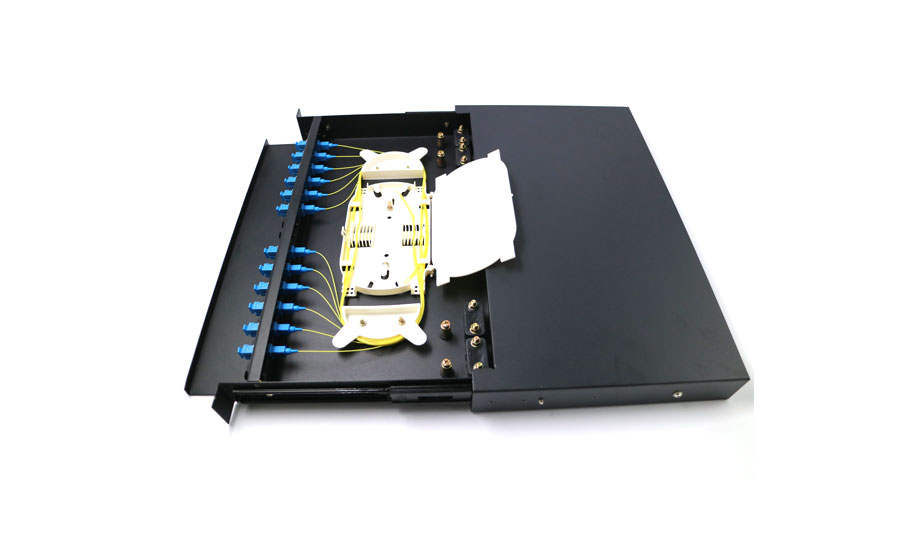

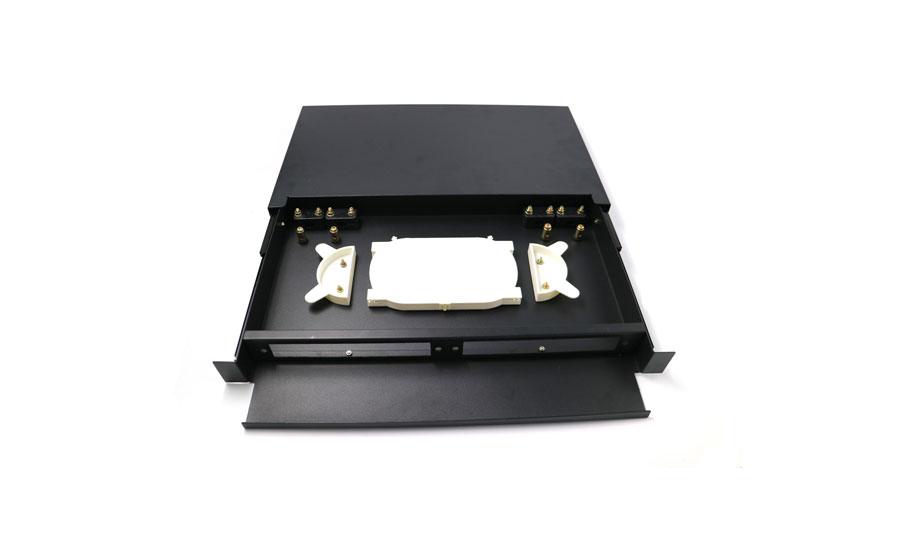

GPZ/SP-CLA Slidable rack-mount fiber optic distribution frame is with the drawer for splicing, easy to withdraw the fibers when testing and distributing. It has aluminum sliding fittings with selflocking functions prevent the drawer from falling when moved.GPZ/SP-CLAis with 19-inch rack for ST, SC, LC, MTRJ, FC adapters and suitable for ribbon and single fibers. Its slide out drawer is for easy cable management.
