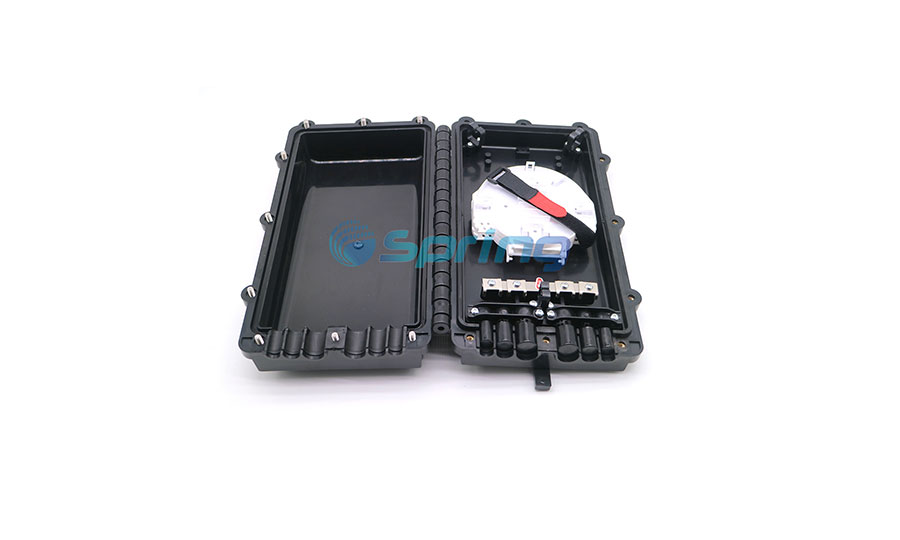

SP-GJS-302 96Core Inline Fiber Optic Splice Enclosure

Product Model

SP-GJS-302

The closures are made of tough anti-corrosive Polycarbonate that makes the closures ideal for aerial, cable duct, direct burial and well applications.

The SP-GJS302 have provides 6 cable entry ports with 3 different diameters.. The SP-GJS302 can accommodate up to 6 12-fiber splice trays.

The closures employ gasket-sealing technology that enables ease of installation and re-entry requiring no special tools. Air valve is also available as an optional accessory for direct burial applications.

Characteristics Value/Performance
Type SP-GJS302
No. of Cable Port 6
Max. Cable Diameter allowed 20mm/16mm/13mm
Dimension 335×210×86mm
Weight 2.65~2.8Kg
Operating Temperature -40 ~ +60°C
Fiber Bend Radius 30mm
Max. No. of Splice Trays 4
Core of Splice Trays            24
Max. Capacity (single fiber splice)*1 96
