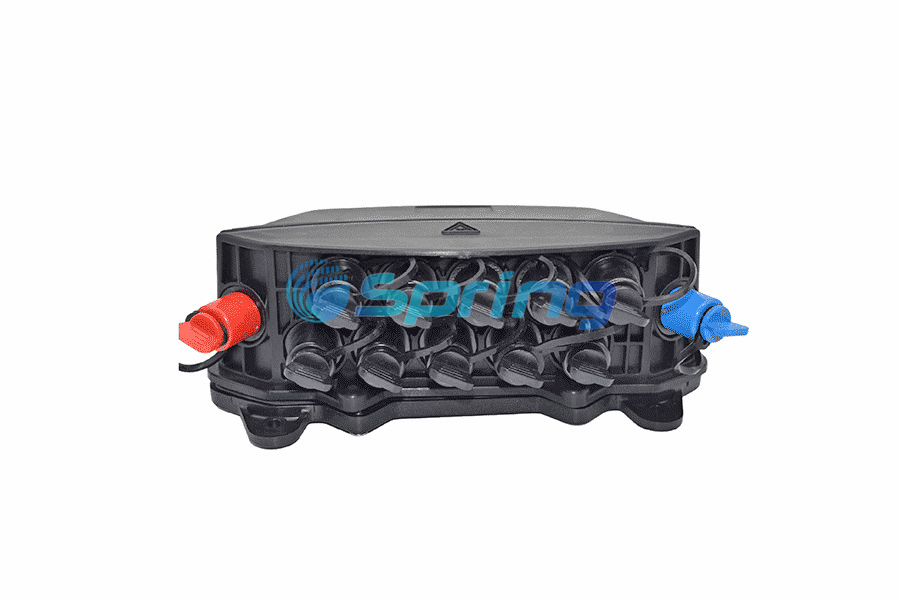

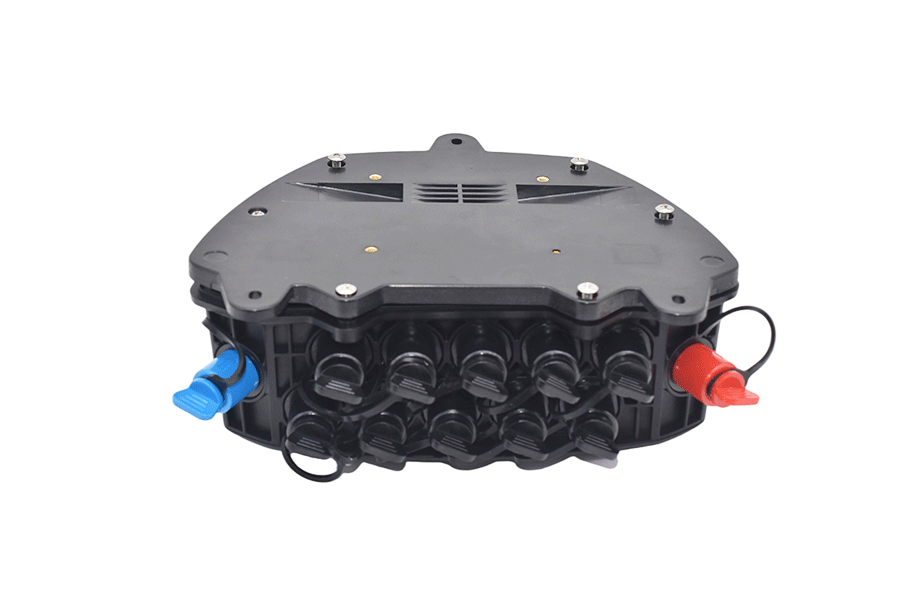

Waterproof 12 port Fiber Distribution Box Pre-terminated Fiber Access Terminal Box

Product Model

SP-JW004-12R

Product Description

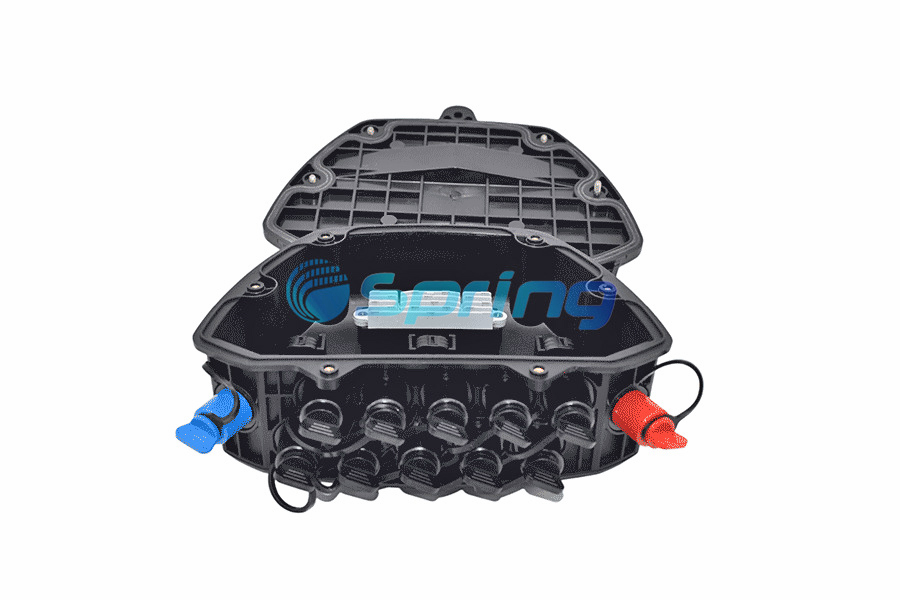

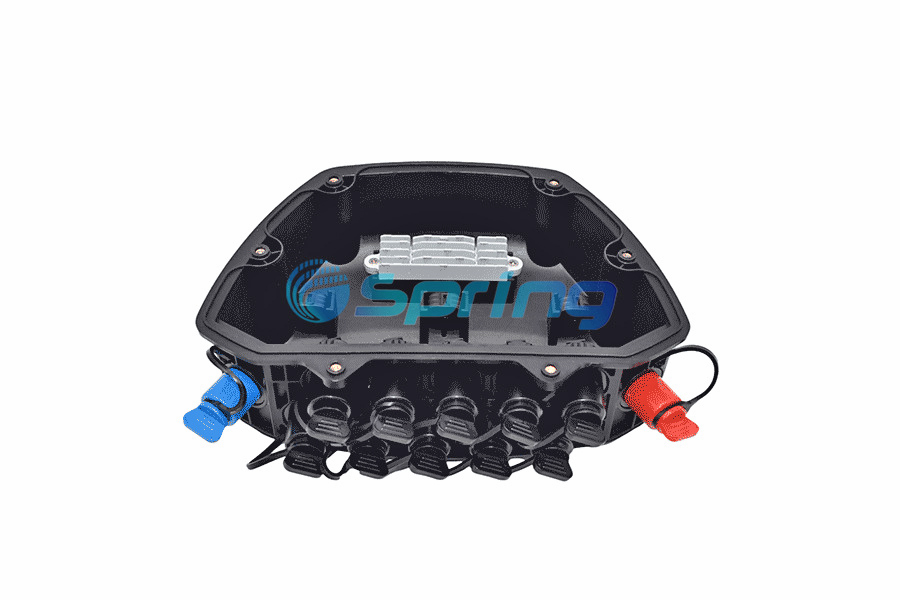

The equipment is a style closure that is sealed mechanically pre connected horizontal connector box .It is single-ended design and is generally used as a Sub-box terminal in an unequal ratio fully pre-connected solution, The box is able to hold up to 9 subscriber. It integrates fiber splicing, splitting, storage and cable management in one solid protection box.

Model No. SP-JW004-12R
Color Black
Capacity 12 cores
Protection rating IP68
Material PP+GF
Inlet/outlet 1/11
Dimension(MM) 184*221*76
Weight 0.65kg

Package Information

QTY 20 PCS
Carton size 50*38*52cm
G.W 13.85kg
N.W 13.1kg
